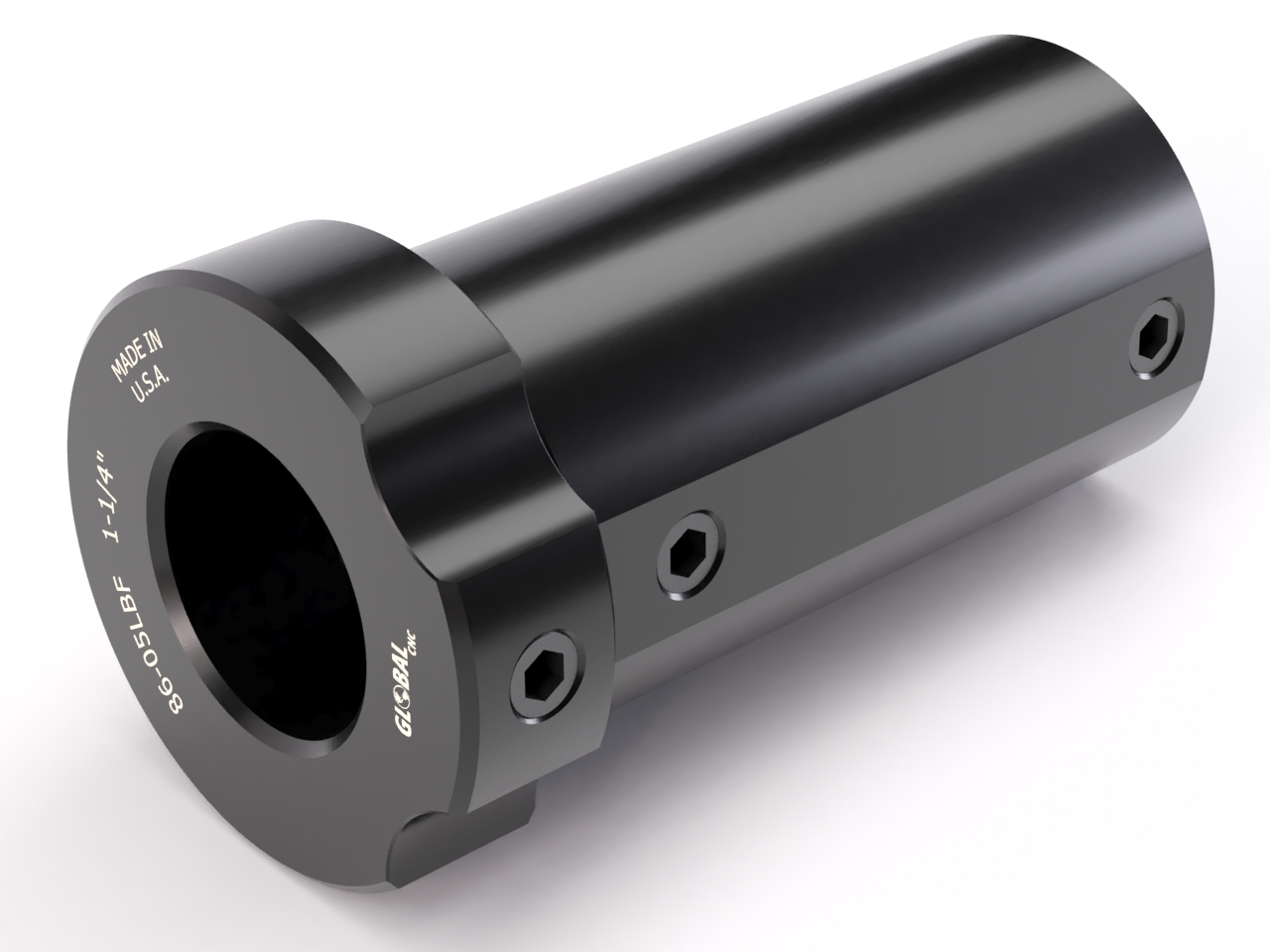

Our type LBF Tool Holder Bushings are designed with a flat on the O.D and two set screws for clamping the cutting tool. Due to the type LBF’s solid construction it works well in coolant through applications. They feature two notches in the head to allow for coolant nozzle clearance. They are used to adapt a wide variety of Boring Bars, Drills, Reamers and Shank type tools.
- Hardened and precision ground concentric
- Black Oxide Coating
- Made in the USA
||Bushing Style||ID Size||OD Size||Length Under Head||Head Thickness
2 OD X 16MM ID LBF Style Tool Holder Bushing
|LBF||16 mm||2.00 in||3 3/4 in||5/8 in||
